Second, confirm the grinding object.

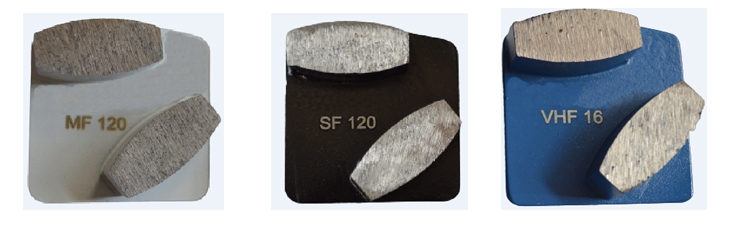

Generally diamond grinding shoes are used for grinding concrete and terrazzo floor, we make different metal bonds specificially for various hardness of floor. For example, extremely soft bond, extra soft bond, soft bond, medium bond, hard bond, extra hard bond, extremely hard bond. Some customers also use for grinding stone surface, we also can adjust the formular base on your request.

XHF extremely soft bond,  for soft concrete below 1000 psi

VHF extra soft bond, for soft concrete between 1000~2000 psi

HF soft bond, for soft concrete between 2000~3500 psi

MF medium bond, for medium concrete between 3000~4000 psi

SF hard bond, for hard concrete between 4000~5000 psi

VSF extra hard bond, for hard concrete between 5000~7000 psi

XSF extremely hard bond for hard concrete between 7000~9000 psi

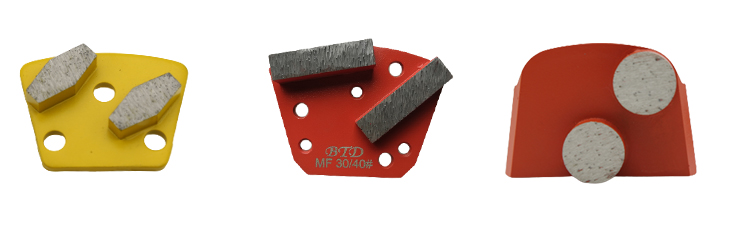

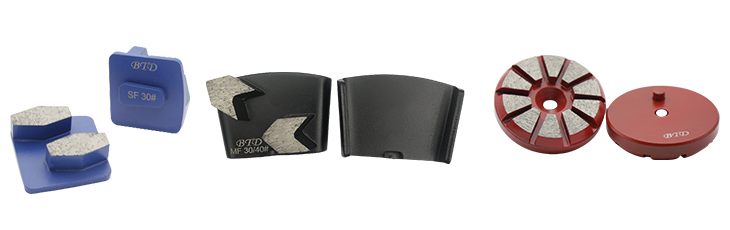

Third, choose the segment shapes.

we offer different segment shapes, such as arrow, rectangle, rhombus, hexagon, coffin, round etc, if you are for initial coarse grinding to faster opening the concrete surface or would like to remove epoxy, paint, glue, you prefer chose segments with angles like arrow, rhombus, rectangle segments, if you are for fine grinding, you can choose round, oval etc segments, which will leave less scratches on the surface after grinding.

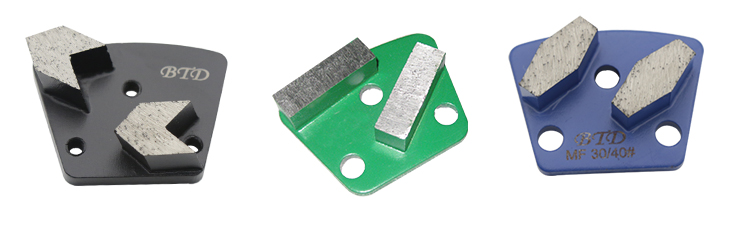

Forth, choose the segment number.

Usually grinding shoes are offered with one or two segments. Choosing between one or two segments allows the operator to control the speed and aggressiveness of the cut. Two segments tools are designed for heavier machines,  Single segment tools are designed for lighter machines, or where aggressive stock removal is required. We recommend using single-segment tools for the first step even with heavier machines for faster opening of the concrete.

Fifth, choose the segment grits

Grits from 6#~300# are available, the common grits we make is 6#, 16/20#, 30#, 60#, 80#, 120#, 150# etc.

If you would like to know more about floor grinding shoes, welcome to contact us.
